6X4 tractor truck

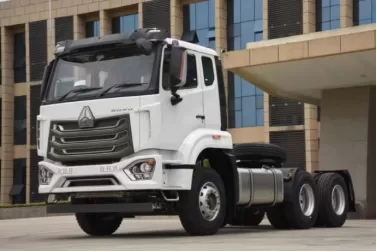

Sinotruk HOWO 6x4 Tractor Truck

Chassis Model

ZZ4257N324V(Left/ Right Hand Driving Type Optional)

Engine

Model: WD615.69, Euro 2, 336HP
6-cylinder in-line with water cooling, turbo-charging and intercooling
Displacement: 9.726 L

Clutch

Single-plate dry diaphragm spring clutch,diameter430mm,hydraulically operating with air assistance

Gearbox

SINOTRUK BRAND, manual operation, HW19710, 10 forward and 2 reverse

Front Axles

HF9, 9000kg with drum brake system(or HF7,7000kg with drum brake system)

Rear Axles

HC16, 2X16000kg, double stage reduction (central+ hub), cast axle housing, ratio: 4.42, 4.8, 5.73, OR

ST16, 2X13000kg, double stage reduction (central+ hub), cast axle housing, ratio: 3.93, 4.42, 4.8, OR

MCY13Q, 2X13000kg, central single stage reduction, ratio: 3.08, 3.36, 3.7, 4.11, 4.63

Suspension

Front suspension: 9 pcs (or 3 pcs) leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer

Rear suspension: 12 pcs (or 5pcs or 15pcs) leaf springs with bogie spring and stabilizer

Rear suspension: 12 pcs leaf springs with bogie spring and stabilizer

Steering System

ZF brand power steering, model ZF8118 , hydraulic steering with power assistance

Braking System

Front drum rear drum brake, four-circuit protection valve

Service brake: dual circuit compressed air brake

Parking Brake(emergency brake): spring energy, compressed air operating on rear wheels

Auxiliary brake (optional): engine exhaust brake(EVB), antilock brake system (ABS), automatic brake gap adjustment arms

Tires

12.00R20 (12.00-20,315/80R22.5, 295/80R22.5. 12R22.5, 12.00R24 optional), with one spare tyre

Fuel Tank Volume (L)

400 (600)

Dead Weight

9180

Gross Vehicle Weight (kg)

25000

Rated Combination Weight(kg)

32400

Rated Loading Weight (kg)

15690

Overall Dimension (LxWxH) (mm)

6800x2496x3700

Wheelbase (mm)

3200+1400

Min.Ground Clearance (mm)

267

Approach/Depart Angle(°)

16/70

Gradeability (%)

20

Min. Turning Diameter (m)

15

Height of Fifth Wheel(unload/load)mm

1360/1326

Fifth Wheel

50mm/90mm (2 inch/3.5inch)

Remark (Engine Power Option)

371HP,420HP
